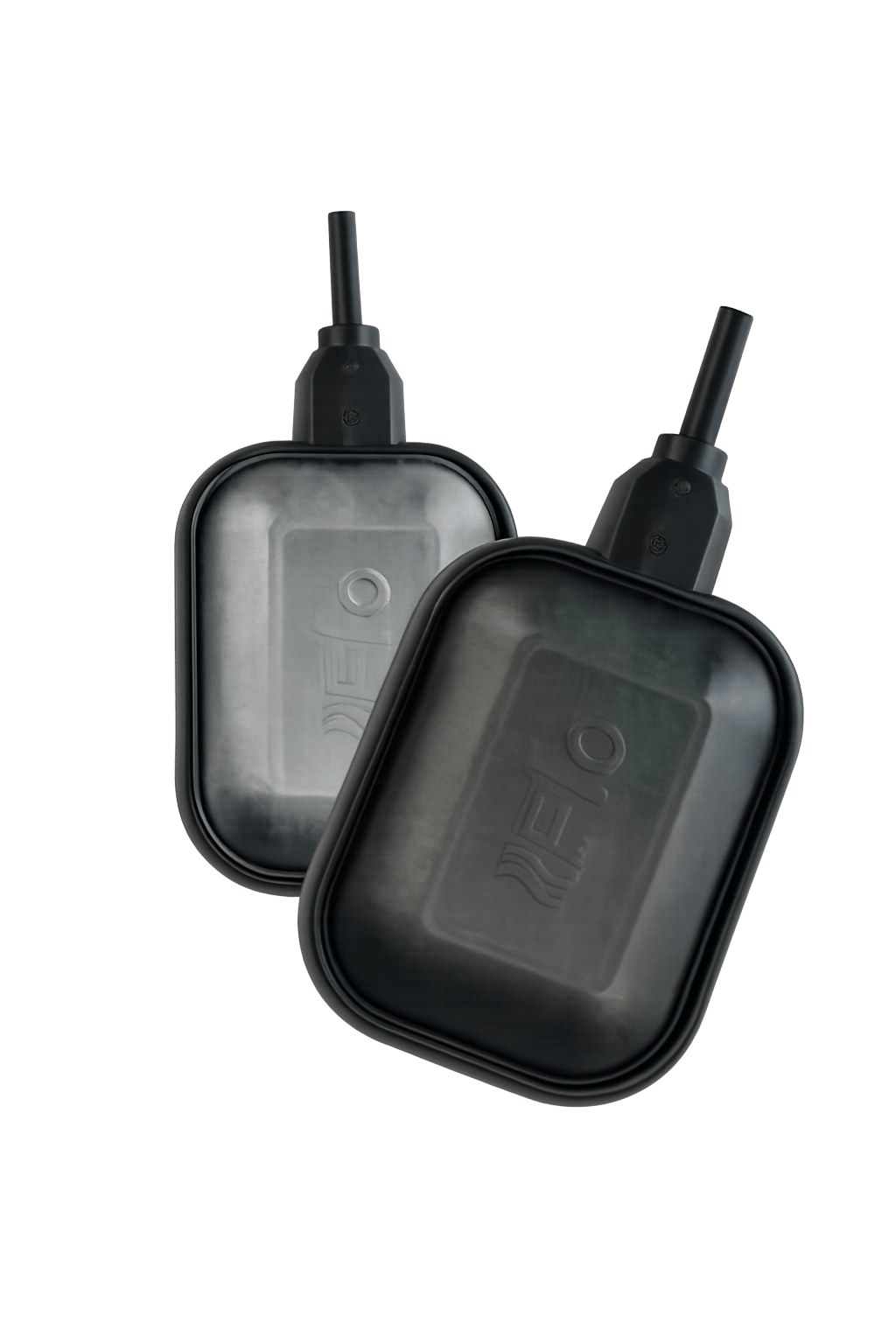

FLO: Float switch for clean waters

FLO is a float switch for level control in clean water, rainwater, and drainage applications.

It automates pump operation based on liquid level, protecting the system and ensuring correct start/stop cycles.

Its compact size and balanced design make FLO suitable for a wide range of installations, while the non-toxic polypropylene construction and IP68 rating ensure reliable performance over time.

Made in Italy. CE certified.

Download

FLO float switch applications

FLO is suitable for level control in residential and professional applications:

  • Pumping stations
  • Level control in clean water tanks and cisterns
  • Rainwater and drainage systems
  • High-level alarm switch
  • Dry-run protection for low-level detection
  • Compatible with single-phase pumps up to 2 HP

Features

FLO’s dimensions allow installation even in confined spaces, making it suitable for a variety of tank and sump configurations.

IP68 rating ensures suitability for continuous submersion, providing long-term reliability in the intended applications.

The non-toxic polypropylene body makes FLO suitable for use with clean water and applications requiring non-contaminating materials.

The availability of a wide range of cable lengths (1–2–3–5–10–15–20 m) allows the float switch to be customized according to the specific requirements of the application.

Technical specifications

Microswitch type 16(4)A 250 V~
Max. fluid temperature +50 °C
Dimensions 81 × 130 × 43,2 mm
Weight (without cable) 157 g
Switching angle ±45°
Insulation grade IP68
Nominal pressure 1,5 bar
Supported pumps Single-phase up to 2 HP
Body material Non-toxic polypropylene (PP)
Cable type PVC 3×1 – Ø 7 mm
Accessories Piggyback, counterweight
